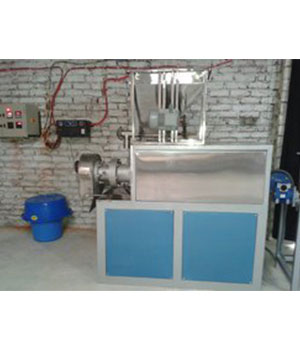

Multi Track FFS Machine for granules & Powder

Category:	Packaging Machines and Material
Sub-Category:	Packaging Machines And Goods
Nationality:	Make In India
Price:	As Per Client

Product Specification	Fully Automatic Multi lane machine, suitable for packing small sachet of Granules& Powder such as Tea , coffee, Tobacco, Mouth Freshener, Hair Dyes, Detergents, Digestive salt in a 4 side seal .
Machine speed	Up to 80 SPM/Per Track depending on the product & sachet/pouch dimension.
Packing range	Suitable to pack 2-50g ,depending upon product characteristic
No. of tracks	Up to 8 tracks depending on sachet/pouch width
Max. roll width	800 mm
Max. roll dia	350 mm
Max length of pouch	Up to 200 mm
Film draw mechanism	Options Servo based Electromagnetic clutch and break
Web controller	Options Electronic web edge control. Pneumo hydraulic web edge controller
Compressed air	3-4 CFM @ 6 kg/cm sq.
Electrical power required	Up to 10KW
Main Body Frame	Option MS with Powder coating. MS with SS cladding
Type of Sealing	4 Side Sealing
Machine dimension	2830 mm X 1300 mm X 2000 (Height mm X Width mm X Length mm)
Net weight	1800 kg
