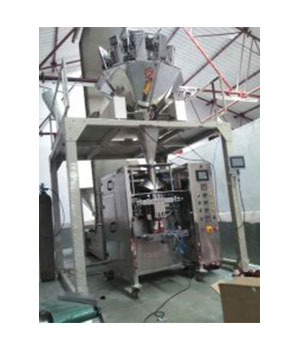

VFFS Machine with Multihead Weigher

Category:	Packaging Machines and Material
Sub-Category:	Packaging Machines And Goods
Nationality:	Make In India
Price:	As Per Client

Catalog
Enquiry
- Share:

Product Description:

VFFS (Multihead ) is an PLC Controlled intermittent Center Seal Bag making machine can pack up to 1 Kg of various kind of Powder, Granule, Liquid, Semi-liquid, Suitable for wide range of heat sealable film such as PET / MET BOPP / POLY or PET/POLY, Paper or Al- Foil laminate. etc. Impulse sealing also incorporated for LDPE / HDPE / LLPE. Easy change over time. All Product Contact parts are made of SS-316, / SS-304.

Features:

Weight to be packed:	30gms-1000gm Multihead Weigher
Automation:	PLC Controlled, PID Temp. Controller, Colour & Touch HMI
Roll Width:	525mm Maximum and Repeat 250 mm
Bag Width :	75mm to 190 mm ( Max.)
Bag Length:	: 65mm to 300 mm (Max).
Type Of Bag:	Center Seal Bag./Three Side Seal / bottom Gussetted
Power Supply & Consumption:	415V , 3 Phase, 50 Hz, and 4.5kw.
Compressed Air Required:	: 6 CFM @ 6 Bar
Speed:	60-70 Bag/Min (Depend on the product and Quantity to be packed)
Dimension:	L; 1550mm, W:1050mm, H: 2700mm
Net Weight:	550 Kg. (Approx.)
