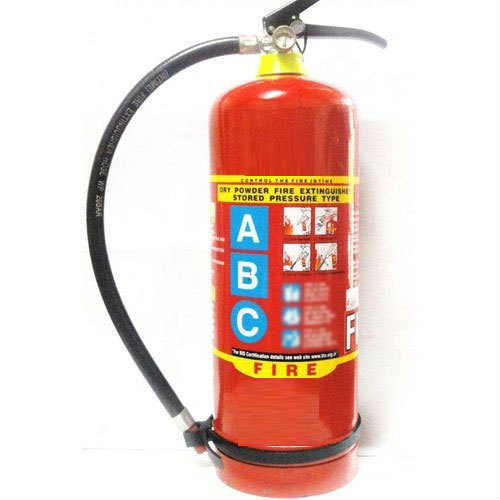

STORED PRESSURE PORTABLE TYPE

Category:	Construction and Decoration
Sub-Category:	Security and Fire Safty
Nationality:	Make In India
Price:	As per client

Specifications:
Type	Stored Pressure
Capactiy	1kg 2kg 4kg 6kg 9kg
Fire Ratting	1A 8B 2A 218 4A 348
Working Temperature	-30C to+55C
Burst Pressure	55/80 bar (min.) 110 bar (Actual)approx
Cylinder Testing Pressure	@ 35 bar for 30 sec.

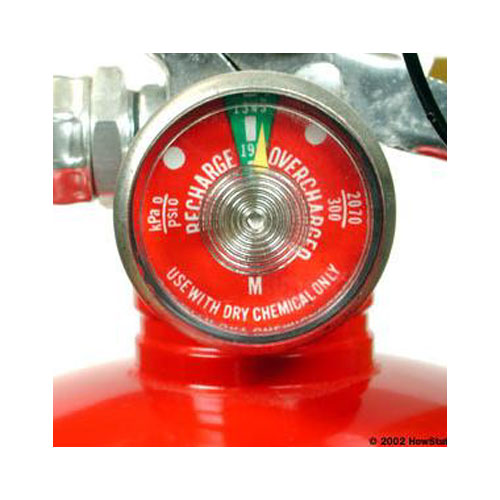

Service Pressure	19 bar max.
Min.Effective Discharge Time	8sec.min. 13sec.min.
Bulk Range% Discharge	2mtr.min.
Propellant	Dry Nitrogen to 15 bar
Gross Weight	2.8kg approx 4.2kg approx 7kg approx 10kg approx 15kg approx
Charge	ABC Dry Powder (MAP50 / MAP90)
